| Part number | Image | IH (A) |
IT (A) |
Vmax (V) |
Imax (A) |
Max.Time-to-trip (A) (S) |
Pdtyp (W) |
Rmin (Ω) |
R1max (Ω) |
|

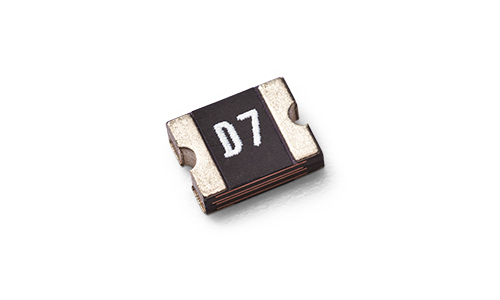

| LP-USM（L）series |  |
0,05 ... 7,50 |
0,15 ... 15,00 |
30 ... 6 |
10 ... 50 |
0,25 ... 37,50 |
0,02 ... 5,00 |
0,8 ... 1,5 |
3,600 ... 0,001 |
50,000 ... 0,007 |

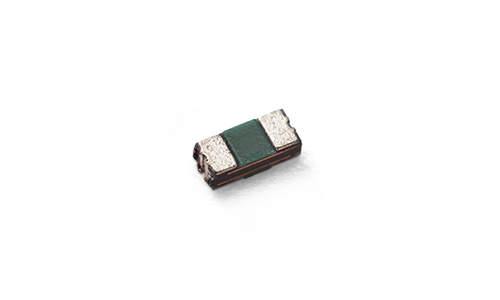

| LP-TSM（L）series |  |
0,04 ... 3,00 |
0,12 ... 6,00 |
15 ... 6 |
3,5 ... 50 |
0,20 ... 8,00 |
0,10 ... 5,00 |
0,5 | 4,000 ... 0,008 |
40,000 ... 0,050 |

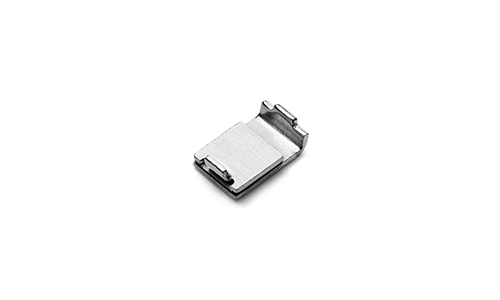

| LP-SM series |  |
0,30 ... 6,50 |
0,60 ... 13,00 |
60 ... 6 |
10 ... 50 |
1,5 ... 32,5 |
0,3 ... 40,0 |
1,5 ... 2,1 |
0,700 ... 0,001 |
4,800 ... 0,010 |
 |
1,30 ... 2,50 |
2,60 ... 5,00 |
33 ... 15 |
40 | 8,0 | 4,00 ... 25,00 |
2,1 ... 1,9 |
0,080 ... 0,025 |
0,280 ... 0,085 |
|

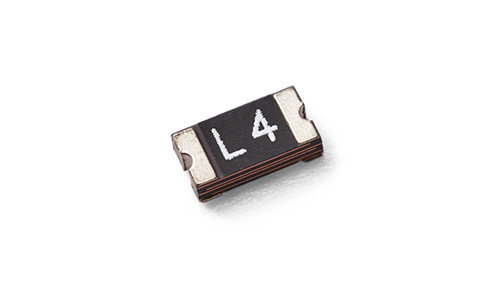

| LP-NSM（L）series |  |
0,05 ... 7,00 |
0,15 ... 14,00 |
60 ... 6 |
10 ... 50 |
1,00 ... 35,00 |
0,05 ... 5,00 |
0,6 ... 1,5 |
2,000 ... 0,001 |
50,000 ... 0,008 |

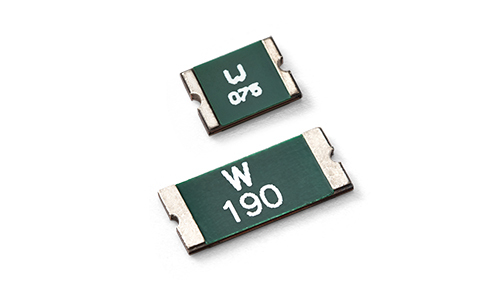

| LP-MSML series |  |
0,01 ... 3,50 |
0,20 ... 9,00 |
60 ... 6 |
10 ... 50 |
1,5 ... 17,5 |
0,15 ... 5,00 |
1 ... 1,5 |
1,600 ... 0,004 |
15,000 ... 0,015 |

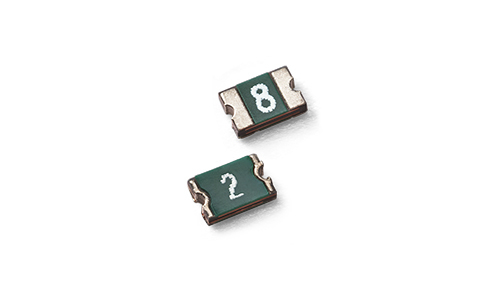

| LP-ISM（L）series |  |
0,05 ... 2,00 |
0,15 ... 4,00 |
15 ... 6 |
10 ... 50 |
0,5 ... 8,0 |
0,02 ... 5,00 |
0,5 ... 1,2 |
3,000 ... 0,008 |
50,00 ... 0,050 |
IH = Hold current: maximum current at which the device will not trip at 25°C still air.
IT = Trip current: minimum current at which the device will always trip at 25°C still air.
Vmax = Maximum interrupt voltage device can withstand without damage at rated current.
Imax = Maximum fault current device can withstand without damage at rated voltage.
Max. Time-to-trip = Maximum time to trip(s) at assigned current.
Pdtyp = Typical power dissipation: typical amount of power dissipated by the device when in state air environment.
Rmin = Minimum device resistance at 25°C prior to tripping.
Rmax = Maximum device resistance at 25°C prior to tripping.
R1max = Maximum device resistance measured one hour post-trip at 25°C
