| Part number | Image | IH (A) |
IT (A) |
Max.Time-to-trip (A) (S) |
Vmax (V) |
Imax (A) |
Pdtyp (W) |
Rmin (Ω) |
Rmax (Ω) |
R1max (Ω) |
|

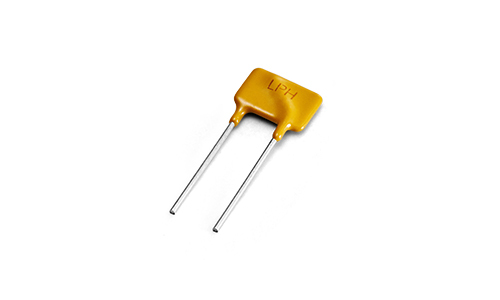

| LPH series |  |
0,5 ... 15 |
0,9 ... 28 |
2,5 ... 75 |
2,5 ... 20 |
30 ... 16 |
40 ... 100 |
0,9 ... 7 |
0,48 ... 0,003 |
0,78 ... 0,006 |
1,10 ... 0,009 |

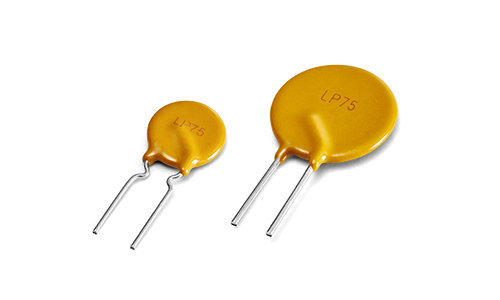

| LP75 series |  |
0,2 ... 3,75 |
0,4 ... 7,5 |
1 ... 18,75 |
3,6 ... 24 |
75 | 40 | 0,52 ... 3,20 |
1,5 ... 0,03 |
2,84 ... 0,05 |
4,52 ... 0,08 |

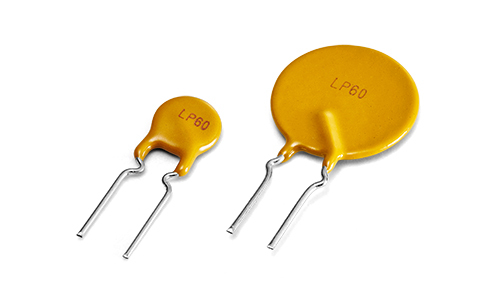

| LP60 series |  |
0,05 ... 3,75 |
0,1 ... 7,5 |
0,25 ... 18,75 |
5,0 ... 24,0 |
60 | 40 | 0,26 ... 3,20 |
7,30 ... 0,03 |
11,10 ... 0,05 |
20,0 ... 0,08 |

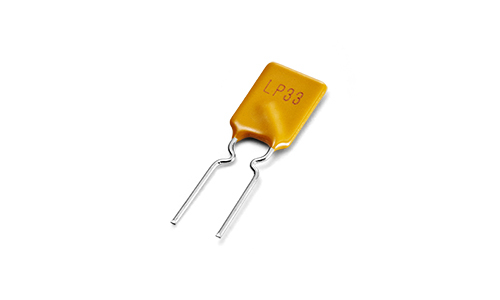

| LP33 series |  |
0,90 ... 9,00 |
1,80 ... 18,00 |
4,5 ... 45,00 |
7,1 ... 20,0 |
33 | 40 | 0,91 ... 4,20 |
0,070 ... 0,005 |
0,120 ... 0,010 |
0,220 ... 0,020 |

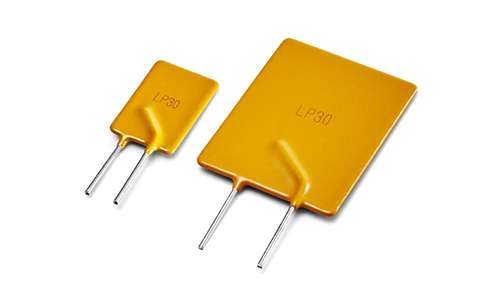

| LP30 series |  |
0,90 ... 9,00 |
1,80 ... 18,00 |
4,50 ... 40,00 |
7,1 ... 20,00 |
30 | 40 | 0,91 ... 4,20 |
0,070 ... 0,005 |
0,120 ... 0,010 |
0,220 ... 0,020 |

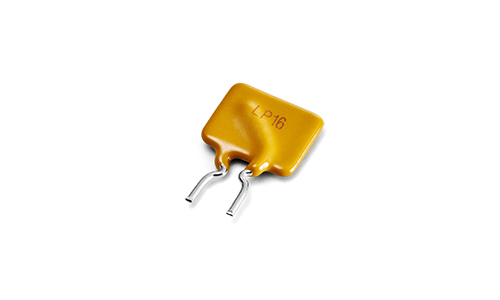

| LP16 series |  |
0,75 ... 14,0 |
1,50 ... 23,80 |
8,0 ... 70,0 |
0,4 ... 20,0 |
16 | 40 ... 100 |
0,3 ... 4,6 |
0,14 ... 0,0014 |
0,23 ... 0,0044 |
0,40 ... 0,008 |

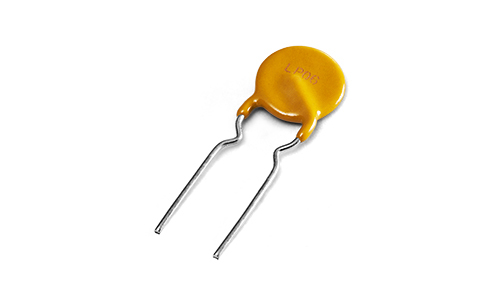

| LP06 series |  |
0,75 ... 2,50 |
1,50 ... 5,00 |
6,00 ... 9,25 |
0,4 ... 40,0 |
6 | 40 | 0,30 ... 1,21 |
0,14 ... 0,03 |
0,23 ... 0,06 |
0,44 ... 0,10 |

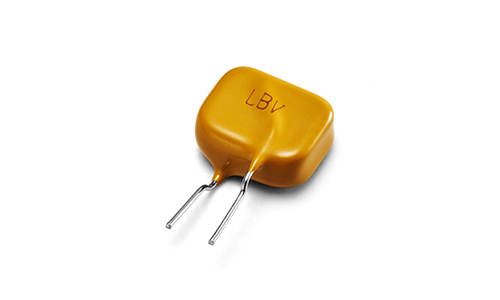

| LBV series |  |
0,150 ... 0,160 |
0,300 ... 0,320 |
1,00 | 8,00 ... 18,00 |
600 | 3,0 | 1,0 | 6,00 ... 4,00 |
12,00 ... 10,00 |
22,00 ... 18,00 |

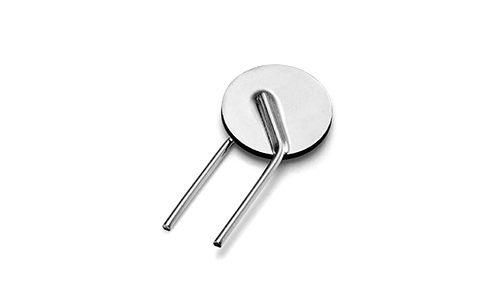

| LBR series |  |
0,20 ... 0,90 |
0,40 ... 1,80 |
0,60 ... 2,60 |
60 | 90 | 20 | 1,70 ... 3,00 |
1,00 ... 0,10 |
2,50 ... 0,50 |
4,20 ... 0,72 |

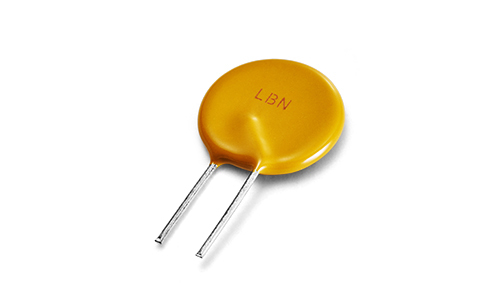

| LBN series |  |
0,05 ... 3,75 |
0,12 ... 7,50 |
0,25 ... 18,75 |
3,2 ... 36,0 |
135 | 1,0 ... 20,0 |
- | 18,50 ... 0,03 |
31,00 ... 0,08 |
65,00 ... 0,12 |

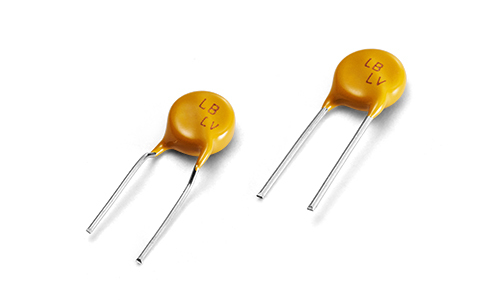

| LBLV series |  |
0,05 ... 2,00 |
0,12 ... 4,00 |
0,25 ... 10,00 |
15,0 ... 28,00 |
265 | 1,0 ... 20,00 |
18,50 ... 0,09 |
31,00 ... 0,09 |
65,00 ... 0,22 |
|

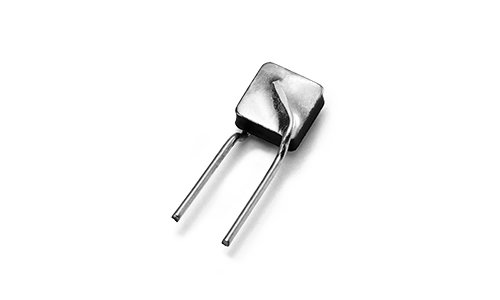

| LB series |  |
0,030 ... 0,180 |
0,060 ... 0,360 |
0,35 ... 3,00 |
0,25 ... 4,00 |
250 | 3 ... 10 |
1,0 | 70,00 ... 0,80 |
130,00 ... 2,00 |
180,00 ... 3,40 |
IH = Hold current: maximum current at which the device will not trip at 25°C still air.
IT = Trip current: minimum current at which the device will always trip at 25°C still air.
Vmax = Maximum interrupt voltage device can withstand without damage at rated current.
Imax = Maximum fault current device can withstand without damage at rated voltage.
Max. Time-to-trip = Maximum time to trip(s) at assigned current.
Pdtyp = Typical power dissipation: typical amount of power dissipated by the device when in state air environment.
Rmin = Minimum device resistance at 25°C prior to tripping.
Rmax = Maximum device resistance at 25°C prior to tripping.
R1max = Maximum device resistance measured one hour post-trip at 25°C
