| Part number | Image | IH (A) |
IT (A) |
Vmax (V) |
Imax (A) |
Max.Time-to-trip (A) (S) |
Pdtyp (W) |
Rmin (Ω) |
Rmax (Ω) |
R1max (Ω) |
|

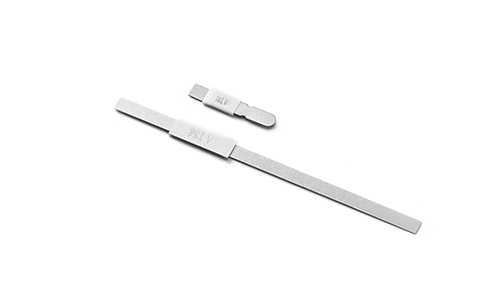

| LV series |  |
1,7 ... 2,3 |
4,1 ... 5,0 |
12 | 100 | 8,5 ... 11,5 |
5,0 | 1,4 | 0,018 ... 0,012 |
0,032 ... 0,018 |
0,064 ... 0,036 |

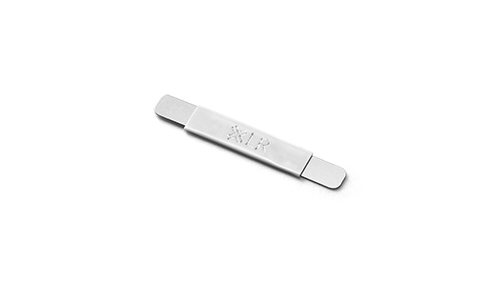

| LR series |  |
1,75 ... 2,7 |
3,9 ... 6,5 |
16 | 100 ... 60 |
8,75 ... 13,5 |
5,0 | 1,8 ... 0,8 |
0,023 ... 0,010 |
0,041 ... 0,018 |
0,082 ... 0,036 |

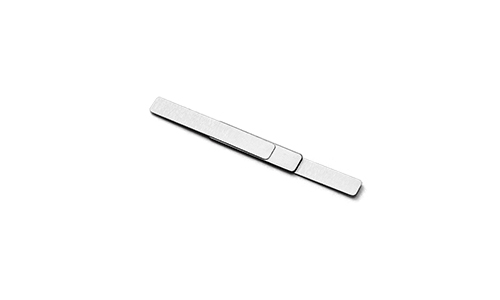

| LP-CW series |  |
1,1 ... 2,5 |
2,7 ... 5,2 |
16 | 100 ... 60 |
5,5 ... 12,5 |
5,0 | 0,7 ... 2,0 |
0,038 ... 0,015 |
0,070 ... 0,025 |
0,140 ... 0,050 |

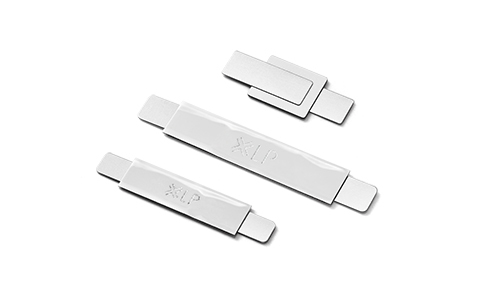

| LP series |  LP Series (1) |
1,2 ... 14,1 |
2,7 ... 26,2 |
15 ... 30 |
100 | 6,0 ... 70,0 |
3,0 ... 6,0 |
0,8 ... 3,0 |
0,085 ... 0,003 |
0,160 ... 0,005 |
0,220 ... 0,007 |
LP Series (2) |
0,7 ... 3,4 |
1,45 ... 6,80 |
15 ... 24 |
100 | 3,5 ... 17,0 |
2,9 ... 7,0 |
0,7 ... 1,7 |
0,100 ... 0,016 |
0,200 ... 0,027 |
0,340 ... 0,050 |
|

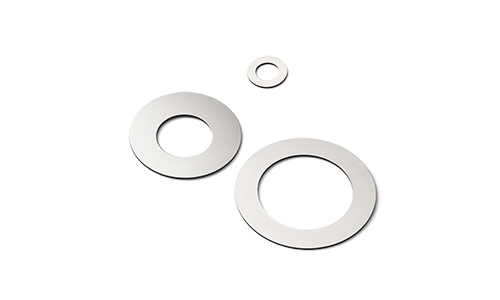

| LP-D series |  |
5,5 ... 1,20 |
11,00 ... 2,00 |
15,00 | 40,0 | 5,0 ... 22,0 |
15,0 ... 5,0 |
0,030 ... 0,010 |
0,060 ... 0,011 |
0,120 ... 0,022 |
|

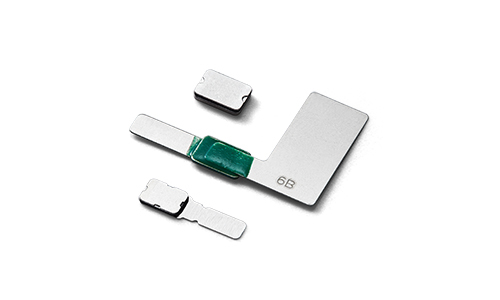

| LTH series |  |
2,5 ... 10,00 |
6,0 ... 24,0 |
10 | 50 | 12,5 ... 50,0 |
5 | 1,0 ... 2,5 |
0,006 ... 0,001 |
0,014 ... 0,006 |
0,028 ... 0,016 |

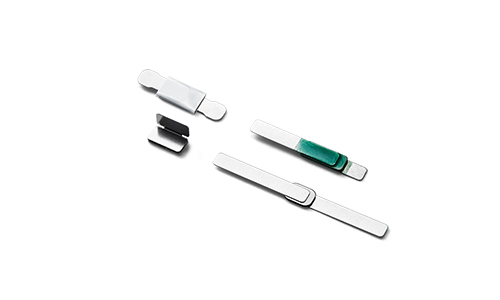

| LN series |  |
1,1 ... 5,0 |
2,8 ... 15,0 |
6 | 50 | 5,5 ... 25,0 |
2,0 ... 5,0 |
1,0 ... 1,8 |
0,015 ... 0,004 |
0,030 ... 0,009 |
0,060 ... 0,020 |
IH = Hold current: maximum current at which the device will not trip at 25°C still air.
IT = Trip current: minimum current at which the device will always trip at 25°C still air.
Vmax = Maximum interrupt voltage device can withstand without damage at rated current.
Imax = Maximum fault current device can withstand without damage at rated voltage.
Max. Time-to-trip = Maximum time to trip(s) at assigned current.
Pdtyp = Typical power dissipation: typical amount of power dissipated by the device when in state air environment.
Rmin = Minimum device resistance at 25°C prior to tripping.
Rmax = Maximum device resistance at 25°C prior to tripping.
R1max = Maximum device resistance measured one hour post-trip at 25°C
