| Part number | Image | IH (A) |
IT (A) |
Vmax (V) |
Imax (A) |
Max.Time-to-trip (A) (S) |
Pdtyp (W) |
Rmin (Ω) |
R1max (Ω) |
|

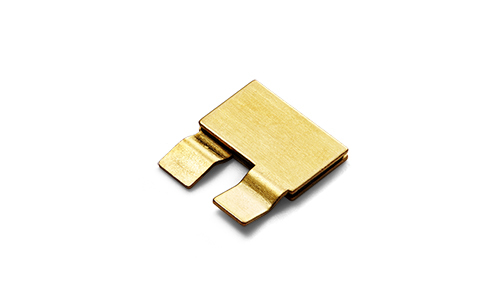

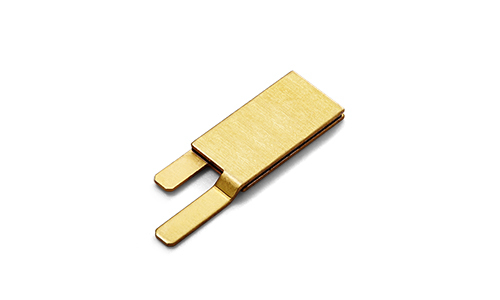

| LA-SA series |  |
6,0...4,0 | 12,0...8,00 | 14 | 50 | 30,00...25,00 | 4...60 | 6...5 | 0,020...0,008 | 0,20...0,016 |
 |
4,00 | 8,00 | 16 | 50 | 15,00 | 4...25 | 4,5 | 0,020 | 0,040 | |
IH = Hold current: maximum current at which the device will not trip at 25°C still air.
IT = Trip current: minimum current at which the device will always trip at 25°C still air.
Vmax = Maximum interrupt voltage device can withstand without damage at rated current.
Imax = Maximum fault current device can withstand without damage at rated voltage.
Max. Time-to-trip = Maximum time to trip(s) at assigned current.
Pdtyp = Typical power dissipation: typical amount of power dissipated by the device when in state air environment.
Rmin = Minimum device resistance at 25°C prior to tripping.
Rmax = Maximum device resistance at 25°C prior to tripping.
R1max = Maximum device resistance measured one hour post-trip at 25°C
