MBH7BTZ52



Bluetooth module for iOS accessory- Power Class 2, CSR BC4-External

Features

  • Before using this module, please note that user must be a member of the Apple Inc.® Mfi licensing program (https: //developer.apple.com/programs/mfi/)
  • Bluetooth specification version 2.1 + EDR compliant
  • Power Class 2 (+4dBm max.)
  • Upper layer protocol stack (L2CAP, SDP, RFCOMM) and profiles (GAP, SPP) are embedded
  • Receiver sensitivity: basic rate -87dBm typical
  • Hardware interface: UART (9.6k ~1.382kbps)
  • Software interface: simple proprietary command
  • Operating temperature: -25 to +85 degrees C
  • Supply voltage: 2.7 to 3.6VDC
  • I/O power supply 1.7 ~ 3.6V
  • Integrated antenna
  • Bluetooth Qualified End Product: ID No: B016068 (SIG website: https: //www.bluetooth.org/tpg/listings.cfm)
  • 17.6 x 14.0 x 1.9mm
  • FCC/IC/CE compliant

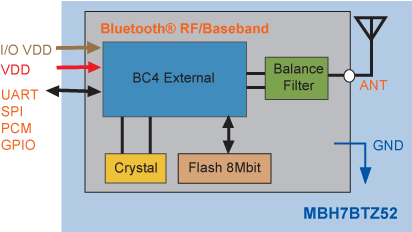

Block Diagram
