Bluetooth module for iOS accessory- Power Class 2, CSR BC4-External
Features
- Before using this module, please note that user must be a member of the Apple Inc.® Mfi licensing program (https: //developer.apple.com/programs/mfi/)
- Bluetooth specification version 2.1 + EDR compliant
- Power Class 2 (+4dBm max.)
- Upper layer protocol stack (L2CAP, SDP, RFCOMM) and profiles (GAP, SPP) are embedded
- Receiver sensitivity: basic rate -87dBm typical
- Hardware interface: UART (9.6k ~1.382kbps)
- Software interface: simple proprietary command
- Operating temperature: -25 to +85 degrees C
- Supply voltage: 2.7 to 3.6VDC
- FPC/FFC connector
- Patterned antenna
- Bluetooth Qualified End Product: ID No: B016068 (SIG website: https: //www.bluetooth.org/tpg/listings.cfm)
- 31.0 x 15.0 x 2.5mm
- FCC/IC/CE compliant

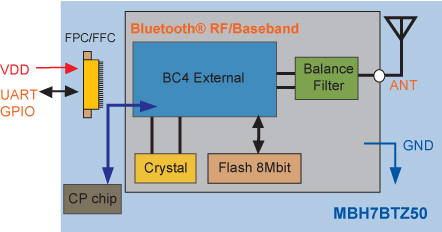

Block Diagram
