Interface Boards



Active

Part number Interface Series (mm/s) Mech only/ Mech w/ cutter Print Speed (mm/s) Overview
FTP-627DSL601 USB FTP-627M Mech w/ cutter 100 USB interface board for use with FTP-627USL401
FTP-627DSL601 Serial FTP-627M Mech w/ cutter 100 USB interface board for use with FTP-627USL401
FTP-627DSL603 USB FTP-627M Mech w/ cutter 100 USB interface board for use with FTP-627USL401
FTP-627DSL605 Serial FTP-627M Mech w/ cutter 100 USB interface board for use with FTP-627USL401
FTP-628DCL300R Parallel FTP-628M Mech only 60 Parallel (Centronics) mini board for use with FTP-628, FTP-638 mechanism only
FTP-628DCL300R Parallel FTP-638M Mech only 60 Parallel (Centronics) mini board for use with FTP-628, FTP-638 mechanism only
FTP-628DCL301R Parallel FTP-628M Mech w/ cutter 60 Parallel (Centronics) mini board for use with FTP-628MCL35x series
FTP-628DSL305R Serial FTP-628M Mech only 60 Serial (RS-232C) board for use with FTP-628, FTP-638 mechanism only
FTP-628DSL305R Serial FTP-638M Mech only 60 Serial (RS-232C) board for use with FTP-628, FTP-638 mechanism only
FTP-628DSL306R Serial FTP-628M Mech w/ cutter 80 Serial (RS-232C) board for use with FTP-628MCL35x series.
FTP-628DSL490R Parallel FTP-628M Mech w/ cutter 60 Parallel / serial combo board for use with FTP-6x8MCL401 series. No SRAM.
FTP-628DSL490R Serial FTP-628M Mech w/ cutter 60 Parallel / serial combo board for use with FTP-6x8MCL401 series. No SRAM.
FTP-628DSL491R Parallel FTP-628M Mech w/ cutter 60 Parallel / serial combo board for use with FTP-6x8MCL401 series. SRAM.
FTP-628DSL491R Serial FTP-628M Mech w/ cutter 60 Parallel / serial combo board for use with FTP-6x8MCL401 series. SRAM.
FTP-628DSL493R Parallel FTP-628M Mech w/ cutter 60 Parallel / serial combo board for use with FTP-6x8MCL401 series. Flash SRAM.
FTP-628DSL493R Serial FTP-628M Mech w/ cutter 60 Parallel / serial combo board for use with FTP-6x8MCL401 series. Flash SRAM.
FTP-629DCL014R Parallel FTP-629M, 639M, 649M Mech w/ cutter 200 Parallel (Centronics) board for use with FTP-629, 639 series
FTP-629DSL034R Serial FTP-629M, 639M, 649M Mech w/ cutter 200 Serial (RS-232C) board for use with FTP-629, 639 series

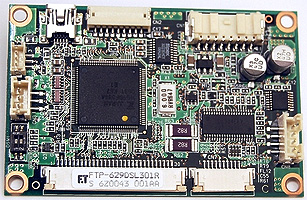

FTP-629DSL100 USB FTP-629M, 639M, 649M Mech w/ cutter 200 USB board for use with FTP-629, 639 series
FTP-637DCL201 Parallel FTP-637M Mech only 100 Parallel (Centronics) board for use with FTP-637MCL05X series
FTP-637DSL234 Serial FTP-637M Mech only 100 Serial (RS-232C) board for use with FTP-637MCL05X series

To Be Discontinued

Part number Interface Series (mm/s) Mech only/ Mech w/ cutter Print Speed (mm/s) Overview
FTP-627DCL201 Parallel FTP-627M Mech only 100 Parallel (Centronics) board for use with FTP-627MCL05X series
FTP-622DCL001 Parallel FTP-622M, 632M, 642M Mech only 80 Parallel (Centronics) board for use with FTP-622, 632, 642 series mechanism only
FTP-622DCL011 Parallel FTP-622M, 632M, 642M Mech w/ cutter 80 Parallel (Centronics) board for use with FTP-622, 632, 642 series mechanism with cutter
FTP-622DCL101 Parallel FTP-622M, 632M, 642M Mech only   Parallel (Centronics) board with Kanji for use with FTP-622, 632, 642 series mechanism only
FTP-622DCL111 Parallel FTP-622M, 632M, 642M Mech w/ cutter   Parallel (Centronics) board with Kanji for use with FTP-622, 632, 642 series mechanism with cutter
FTP-622DSL001 Serial FTP-622M, 632M, 642M Mech only 80 Serial (RS-232C) board for use with FTP-622, 632, 642 series mechanism only
FTP-622DSL011 Serial FTP-622M, 632M, 642M Mech w/ cutter 80 Serial (RS-232C) board for use with FTP-622, 632, 642 series mechanism with cutter
FTP-624DCL002 Parallel FTP-624M, 634M, 644M   50 Parallel (Centronics) board for use with FTP-624, 634, 644 series
FTP-624DSL002 Serial FTP-624M, 634M, 644M   50 Serial (RS-232C) board for use with FTP-624, 634, 644 series

Discontinued

Part number Interface Series (mm/s) Mech only/ Mech w/ cutter Print Speed (mm/s) Overview
FTP-622DSL012 Serial FTP-622M, 632M, 642M   80 Serial (RS-232C) board with Flash for use with FTP-622, 632, 642 series
FTP-621DCL002 Parallel       Parallel (Centronics) board for use with FTP-621, 631, 641MCL10X and 30X
FTP-621DCL012 Parallel       Parallel (Centronics) board for use with FTP-621, 631, 641MCL10X and 30X
FTP-621DCL003 Parallel       Parallel (Centronics) board for use with FTP-621, 631, 641MCL20X and 35X
FTP-621DCL013 Parallel       Parallel (Centronics) board for use with FTP-621, 631, 641MCL20X and 35X
FTP-622DSL438 Parallel       Parallel/Serial (RS-232C) board for use with FTP-602MCL10X and 35X with or without cutter. Includes Flash Memory.
FTP-622DSL438 Serial       Parallel/Serial (RS-232C) board for use with FTP-602MCL10X and 35X with or without cutter. Includes Flash Memory.
FTP-624DSL113 Serial       Serial (RS-232C) board with cutter control for use with FTP-624 series
FTP-627DCL218 Parallel       Parallel (Centronics) board for use with FTP-627MCL05X series
FTP-627DSL234 Serial FTP-627M Mech only 100 Serial (RS-232C) board for use with FTP-627MCL05X series
FTP-627DSL238 Serial       Serial (RS-232C) board for use with FTP-627MCL05X series
FTP-628DSL102 Serial       Serial boad for FTP-628MCL00x
FTP-637DCL218 Parallel       Parallel (Centronics) board for use with FTP-637MCL05X series
FTP-637DSL238 Serial       Serial (RS-232C) board for use with FTP-637MCL05X series
