MBH7BTZ43



Bluetooth SPP module - Power Class 2, CSR BC4-External

Features

  • Bluetooth specification version 2.1 + EDR compliant
  • Power Class 2 (+4dBm max.)
  • Upper layer protocol stack (L2CAP, SDP, RFCOMM) and profiles (GAP, SPP) are embedded
  • Receiver sensitivity: basic rate -86dBm typical
  • Hardware interface: UART (9.6k ~1,382.4kbps)
  • Software interface: simple proprietary command
  • Operating temperature: -25 to +85 degrees C
  • Supply voltage: 2.7 to 3.6VDC (VDD_REG)
  • I/O voltage: 1.7 to 3.6VDC
  • Built-in crystal
  • Built-in 8Mbit flash memory
  • Bluetooth Qualified End Product: ID No: B016068 (SIG website: https: //www.bluetooth.org/tpg/listings.cfm)
  • 22.5 x 10.6 x 2.3mm
  • FCC/IC/CE compliant

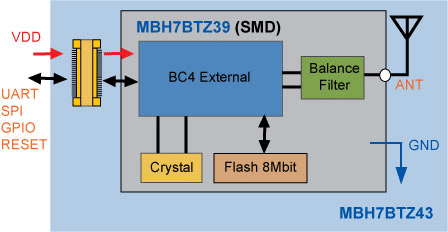

Block Diagram
